Graafmasjien Rups Ketting Montering (Ramskakel)
Tegniese Spesifikasies
Let asseblief daarop: Afmetings verskil volgens masjienmodel. Hieronder is standaardmateriaal- en behandelingspesifikasies.
Materiaal: Gesmede staal (35MnB / 40Mn2)

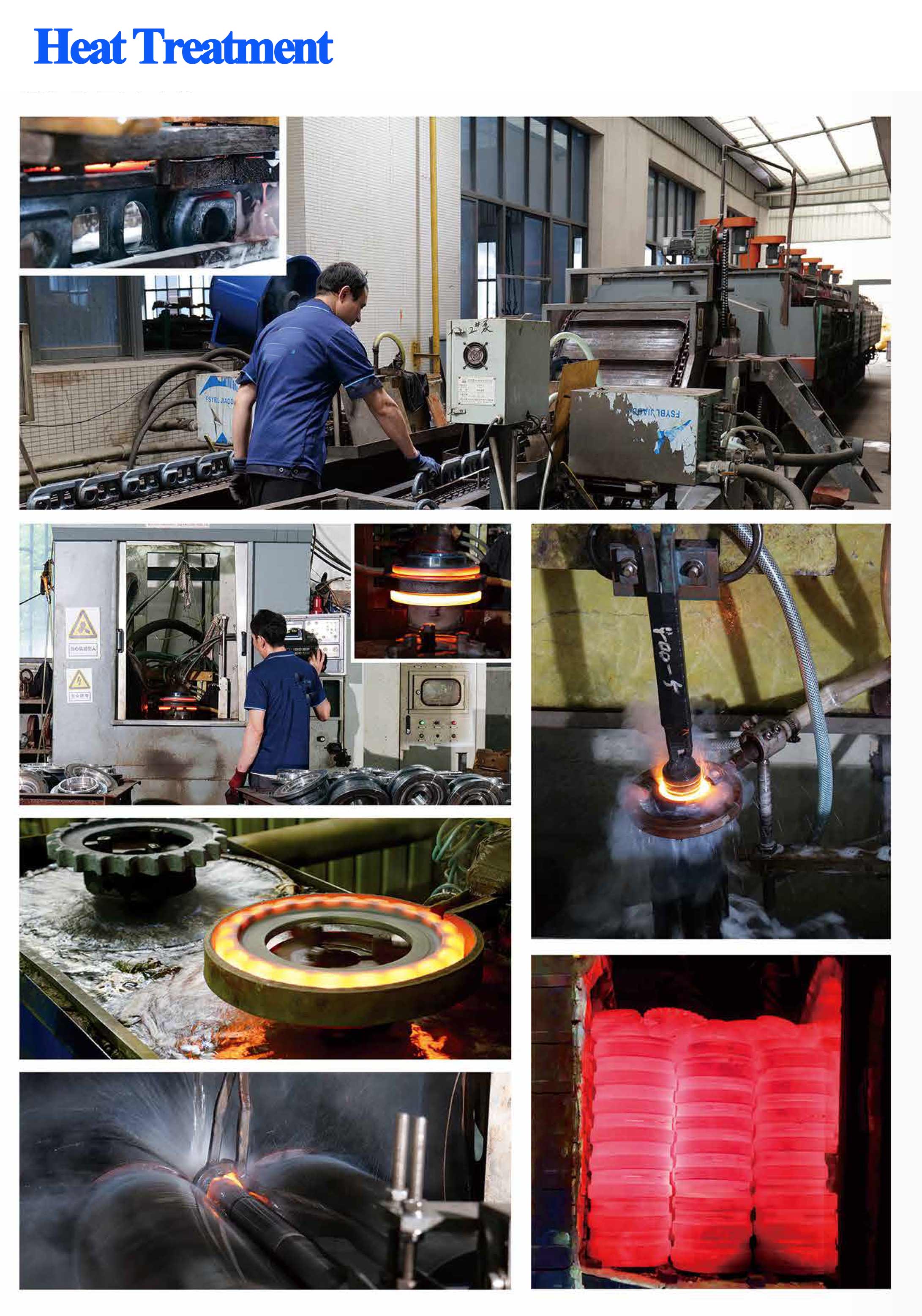

Hittebehandeling: Medium frekwensie induksie verharding
Oppervlakhardheid: HRC 52-58
Hardheidsdiepte: 8-12 mm (afhangende van skakelgrootte)
Kettinghoogte-opsies: [Voeg hoogtebereik in, bv. 135 mm tot 260 mm]
Aantal skakels: [Voeg skakels in, bv. 39L, 45L, 52L]
Boutgatgroottes: [bv. 14 mm, 16 mm, 18 mm, 22 mm]
Waarborg: [bv. 2 000 werksure of 1 jaar]
Ontwerpkenmerke
CNC-bewerkte boutgate: Verseker 'n stywe, veilige passing vir die rupsbandskoene, wat verhoed dat hardeware onder swaar vibrasie terugtrek.
Versterkte stutte: Skakelontwerp is geoptimaliseer om krake en buiging onder swaar laste te voorkom.
Stywe perspassing: Penne en busse word onder hoë druk saamgestel om seëlintegriteit te handhaaf en vuiligheid uit te hou.
| Nee. | Toonhoogte | Boutgat | Toepaslik | Model | Gewig per skakel | Materiaal |
| 1 | 228 | 24.5 | 45-55T | PC400-6/XCG470/SY465/SE470/SE500/XCMG470/SY485/Liugong956 | 21.5 | 35MnB |
| 2 | 216 | 24.5 | 40-50T | PC400-5/PC360-1/3/5/EX400-5/PC400-3/5/XCMG370/XCG845/ZX450/R944/EC480/EC460/CLG945/E345/DX500/DH500/DH420/Liugong950/Linkin500/ | 20.4 | 35MnB |
| 3 | 216 | 22.5 | 40-50T | PC400-1/R350/R360/EX400-1/PC400-1/3/EX450-5/ZX370/SE350/SE370/R944C/R944SME/EC360/EC380D | 19.5 | 35MnB |
| 4 | 216 | 22.5 | 40-50T | E330/CLG936/E336 | 18.81 | 35MnB |
| 5 | 216 | 22.5 | 28-35T | PC300-6/PC350-6, EX300-5/6 ZX330/ZX350/R320/EX355/XG830/XG836/SY285/SY310/SY335/SY365/SY375 | 16.9 | 35MnB |
| 6 | 203 | 21 | 25-30T | E325 | 15.3 | 35MnB |
| 7 | 203 | 21 | 28-35T | EX300-1/PC300-1/2/3/shantuity160/PD165/EX270-1/5/EX280-/EX310/HD1250SEV/LS420F2/FJ/SH300/E300B/HD1220SE-1/2/EC300D | 16.00 | 35MnB |
| 8 | 203 | 23 | 28-35T | PC300-5 | 16.00 | 35MnB |
| 9 | 190 | 21 | 20-25T | PC200-5/EC210/DH220/DX225/SY225/CLG220-3/EX220-2/EX230-5/EX240/ZX225/SE210-2/3/SE280/EC210/R220/SH220/LS340F2/F/EX210/ZAX200-7/UH083/R215LC-7/R225-7/MS250-8/DH220-5/S322C/R210-3/R225LC-7/Stuurwiel SW210LC-5/SE210LC-2/SY235/SY245/SE215 | 11.7 | 35MnB |
| 10 | 190 | 20.5 | 20-25T | E320/E200B/SK200/SK260/SK230/CLG920D/SH200/SH210-3/HD820/E315B/E3 17B/E240/E250B/E322/凯斯CX240B/E220B/SK250/HD1023/SH220/XCMG215/E326 | 11.9 | 35MnB |
| 11 | 171 | 16.5 | 10-15T | EX100/E312/E120B/EC140/DH130/DH150 | 7.4 | 40MN2 |
| 12 | 175 | 16.5 | 10-15T | PC100-5/PC120/PC130/PC150-3/SY120/SY135C-8/SY150/CLG913D/CLG915D/916D/SE130/中联135 | 6.8 | 40MN2 |
| 13 | 154 | 14.5 | 8-12T | PC60-6/PC71/EX60-5/EX70/SK60-1/2/3/SH70/SH75/HD307/CLG907/SE75/CLG9075 | 4.2 | 40MN2 |
| 14 | 154 | 14.5 | 8-12T | EC80/EX60-1/EX90 | 5.3 | 40MN2 |
| 15 | 135 | 12.5 | 5-8T | PC60-5/D20/SH60/SH75/SWE70/SE60 | 4 | 40MN2 |
| 16 | 135 | 12.5 | 5-8T | R60/EC55/E305 | 4 | 40MN2 |
